4.3 inch Graphic HMI TFT LCD Touch Panel with Controller Board + Driver + Software + UART Port

LCD Modules>>>Electronic Components & Supplies

Brand Name STONE

Origin CN(Origin)

Display Mode 500:1

Model Number STVC043WT-01

is_customized Yes

Type TFT

4.3 inch Graphic TFT LCM Touch Panel with Controller Board + Driver + Software + UART Port

Product Description

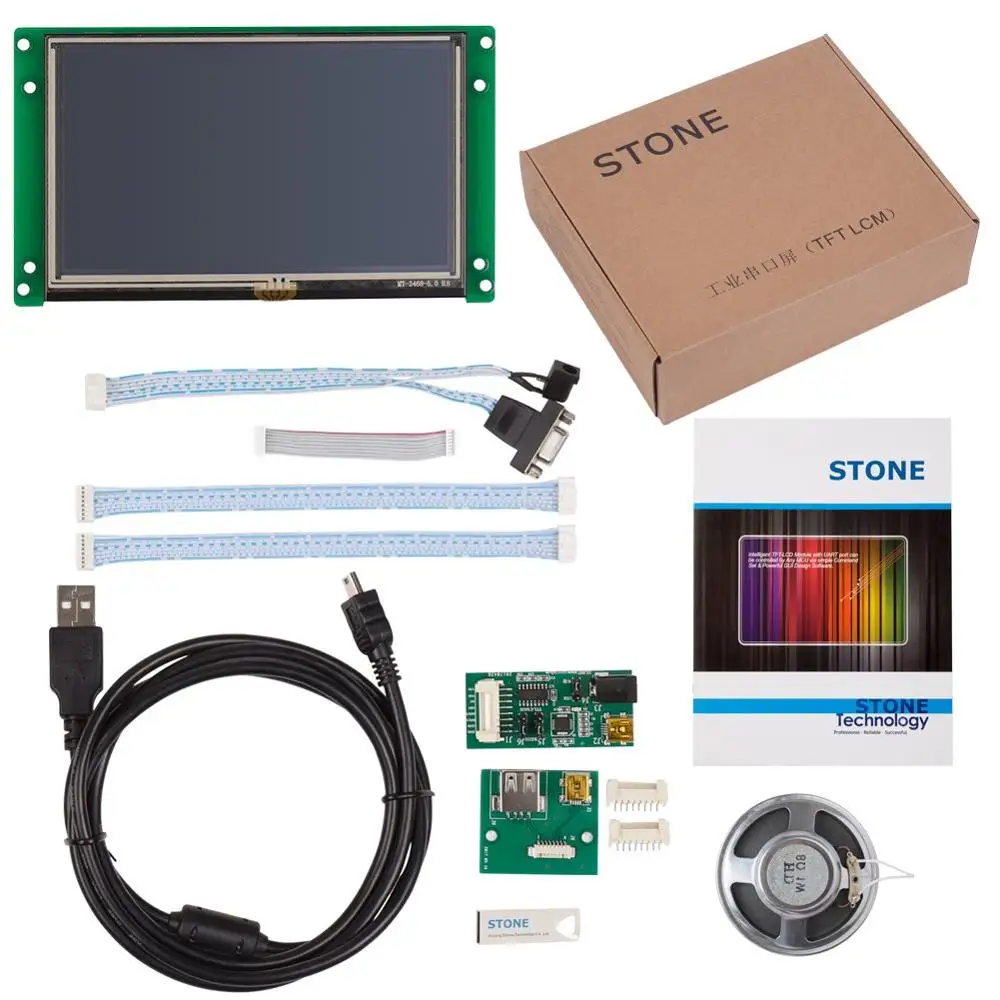

STVC043WT-01

The STVC043WT-01 is the intelligent TFT LCD Module with UART PORT which can be controlled by ANY MCU via Simple Powerful Command Set. So it can be used as colourful TFT Display & Touch controller in various electronic equipment.

The STVC043WT-01 include CPU , TFT Driver,Flash Memory,UART port,power supply and so on,the important is that it has the ready-made Basic Control Program and Powerful Design Software,so that it can reduce much development time and cost for engineers.

Working Principle

Software Operation

1.Design a group of individual Graphic User Interface!

2.Connection by RS232/RS485/TTL/Level Directly!

3.Write the C or C++language program for ANY MCU to control the TFT-LCD Module via Simple & Powerful Hex Command Set!

Function

Product Parameters

Physical Parameter

Model

STVC043WT-01

Size (Inch)

4.3"

Resolution

480timesRGBtimes272

Color

65536 colors (16 bit)

Viewing Area

95 mm times 53.9 mm

Pixel Spacing

0.1905 mm times 0.0635 mm(HtimesV)

Overall Dimension

121.9mmtimes74.7mmtimes13.8mm(N)/15.4mm(T)

Net Weight

115 g(N)/ 155 g(T)

TFT Panel

A+ Class Industry Panel

Touch Screen

Industry Level 4 wire resistance Or without touch screen is optional.

Backlight Parameter

Backlight Type

LED

Brightness

350 cd/m2(Brightness can be adjustable in 100 levels.)

Contrast

500:1

Backlight life

50,000 hours

Viewing Angle

70deg/ 70deg/ 50deg/ 70deg (L/R/U/D)

Working Temperature

-20degC ~ +70degC

Working Humidity

55degC, 85%

Storage Temperature

-30degC ~ +85degC

Screen Mode

Digital

Performance Parameter

CPU

CortexM4

LCD Controller

CPLD EPM240

Refresh Rate

200MHz

Picture Switching Speed

19 ms/picture (53 pictures/s)

Flash Memory

Standard 128m, Extension 1GB

Memory Amount for picture

According to the capability of the image, Suggest "JPG" format

Interface

RS232/ RS485/TTL/USB Interface

Pictures downloading

USB2.0 (12Mbps) & U storage Disk downloading

Voltage Range

DC6.0V ~ 35V (typical value: 12V)

Power

1.0W

Test Report

MTBF

4,250,000H

Working Temperature

-20degC ~ +70degC

Air Humidity

60degC, 90%

Continuous Vibration Testing

10-55Hz, 1.5mm, 10G

Impact Acceleration Testing

6ms, 100G

ESD Testing

10KV

Radiation Reliability Testing

44W

Main Size of TFT LCD Module

Size

Resolution

3.5''

320*240; 320*480

4.3''

480*272

5''

480*272; 640*480; 800*480

5.6''

640*480

5.7''

640*480

7''

800*480; 800*600; 1024*600

8''

800*600; 1024*768

9.7''

1024*768

10.1''

1024*600

10.4''

800*600

12.1''

1024*768

15.1''

1024*768

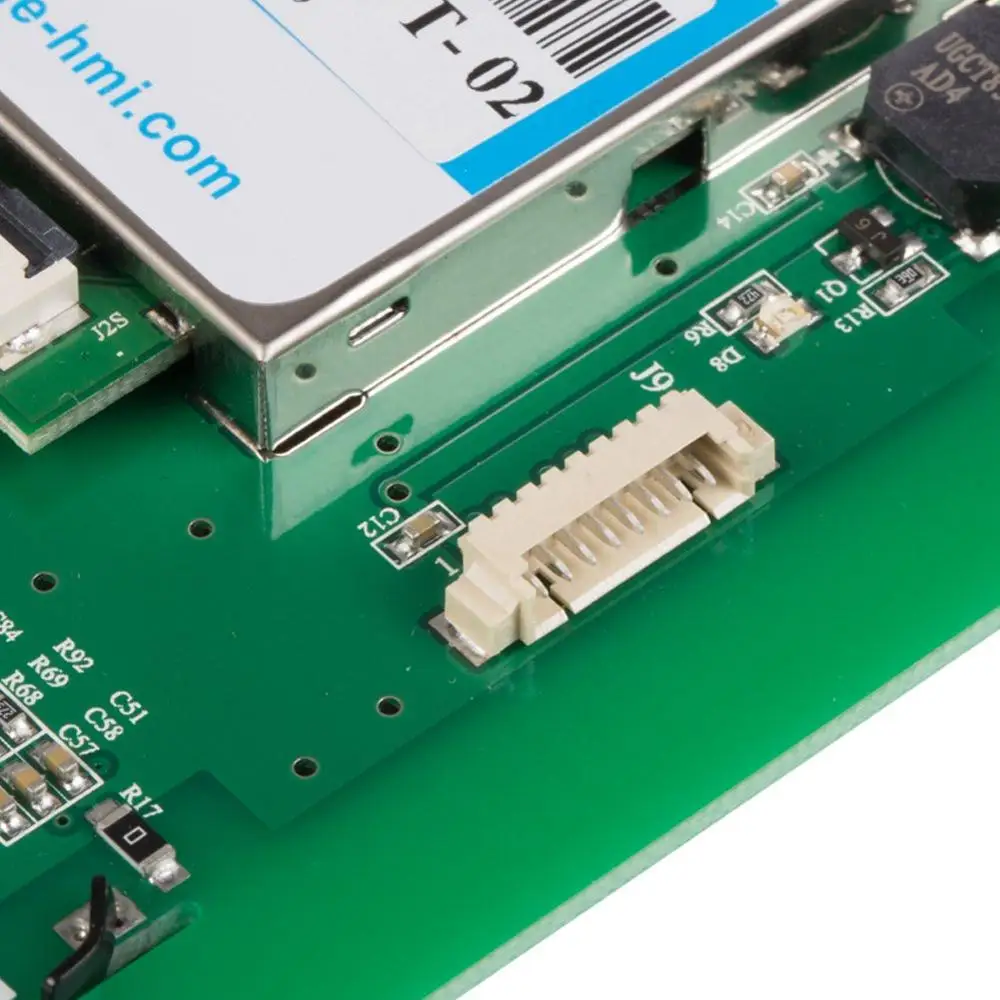

Product Picture

characteristics

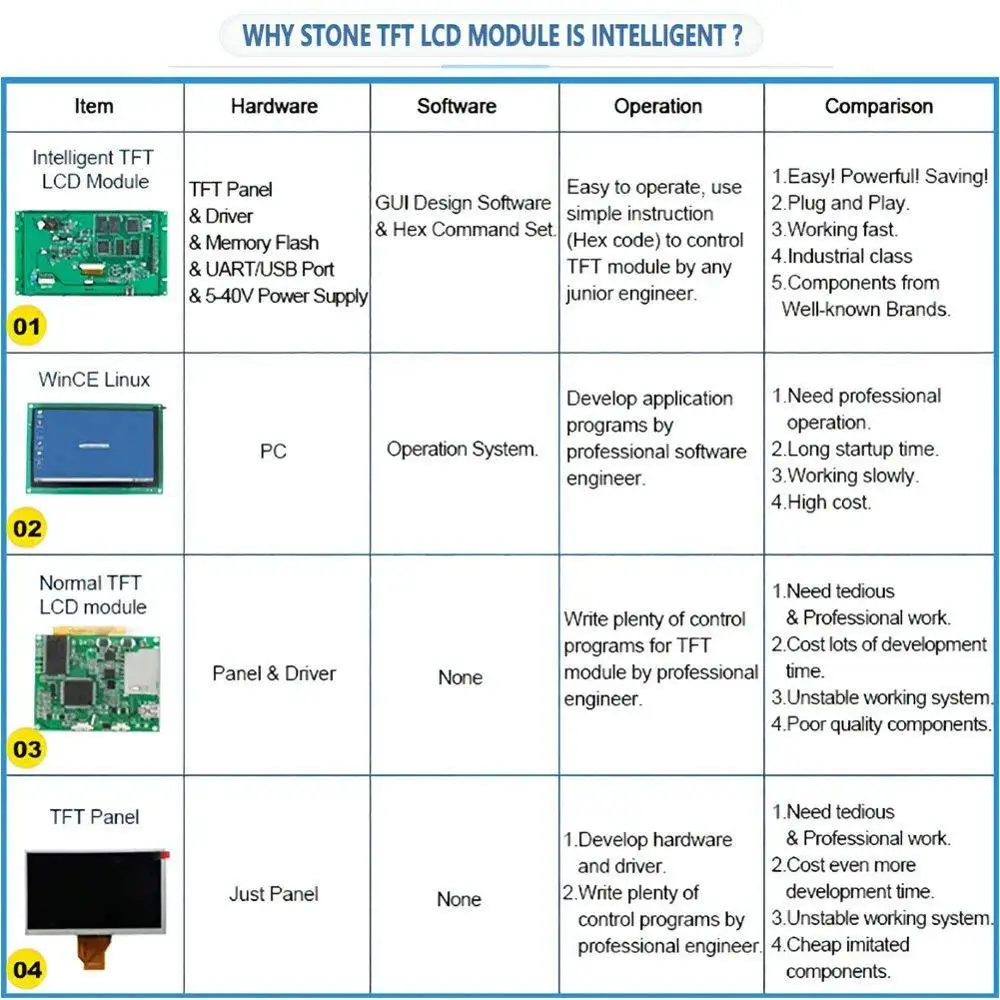

Why STONE TFT LCD Module Is Intelligent?

Item

Hardware

Software

Operation

Comparison

TFT Panel & Driver & Memory Flash & UART/USB Port &5-40V Power Supply

GUI Design Software & Hex Command Set

Easy to operate,use simple instruction(Hex code)to control TFT module by any junior engineer

1.Easy!Pwerfull!Saving!

2.Plug and Play.

3.Working fast.

4.Industrial class.

5.Components from Well-known Brands.

PC

Operation System

Develop application programs by professional software engineer.

1.Need professional operation.

2.Long startup time. 3.Working slowly.

4.High cost.

Panel&Driver

None

Write plenty of control programs for TFT module by professional engineer.

1.Need tedious & Professional work.

2.Cost lots of development time.

3.Unstable workin system.

4.Poor quality components.

Just panel

None

1.Develop hardware and driver.2.Write programs by professional engineer.

1.Need tedious &Professional work.

2.Cost even more development time. 3.Unstable working system. 4.Cheap imitated components.

Application

Our Services

our services

1. 3-YEAR Warranty Period

Replace by a brand-new Unconditionally

2. customizable service.

a. Customize TFT-LCD Module according to customerrsquos requipment . b. Develop the customization function. c. Extend the flash memory to 1GB or 2GB. d. Assign the interface to RS232, RS485 or TTL.

Packaging & Shipping

FAQ
