TFT Display / 2.0/2.2/2.4/2.8/4.0/3.2/3.5 1.44/1.8 Inch IPS7p SPI HD 65 K ST7735TFTColorLCD Module Driver IC 80*160For Arduino

LCD Modules>>>Electronic Components & Supplies

Origin CN(Origin)

is_customized Yes

Type TFT

Resolution 128*64

Display Mode 240*320

Model Number LCD Module

Color

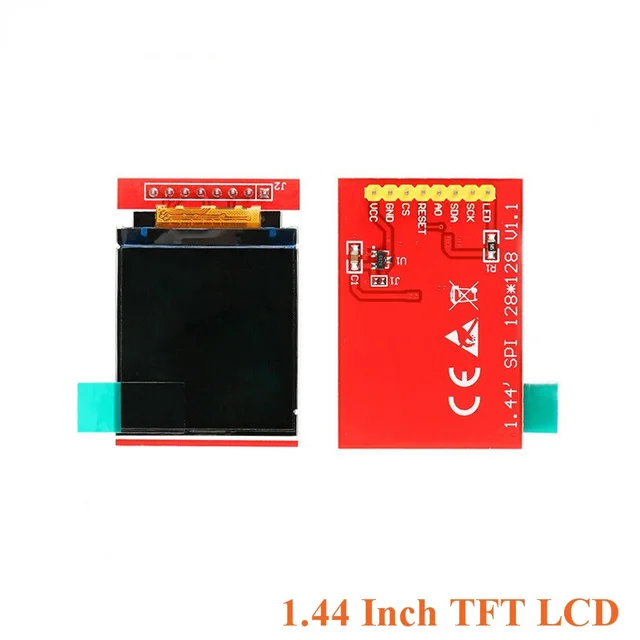

TFT Display / 2.0/2.2/2.4/2.8/4.0/3.2/3.5 1.44/1.8 Inch IPS7p SPI HD 65 K ST7735TFTColorLCD Module Driver IC 80*160For Arduino1.44 Inch

With PCB backplane

Dot matrix: 128X128

Driver: ST7735

Only 4 IOs can drive

1.8 Inch

1.8-inch SPI serial screen with backplane module, requires at least 4 IO drivers

Size: 1.8 inch SPI serial bus

Resolution: 128*160

Driver IC: ST7735

Features:1. Support Arduino various MCU in-line without any wiring2. Integrated voltage regulator IC, support 5V or 3.3V power supply3. Onboard level shifting scheme, truly compatible with 5V/3.3V IO level.Support a variety of microcontroller IO connections4. Integrated SD card expansion circuit,5. Reserve SPI FLASH font circuit to facilitate extended application2.0 Inch

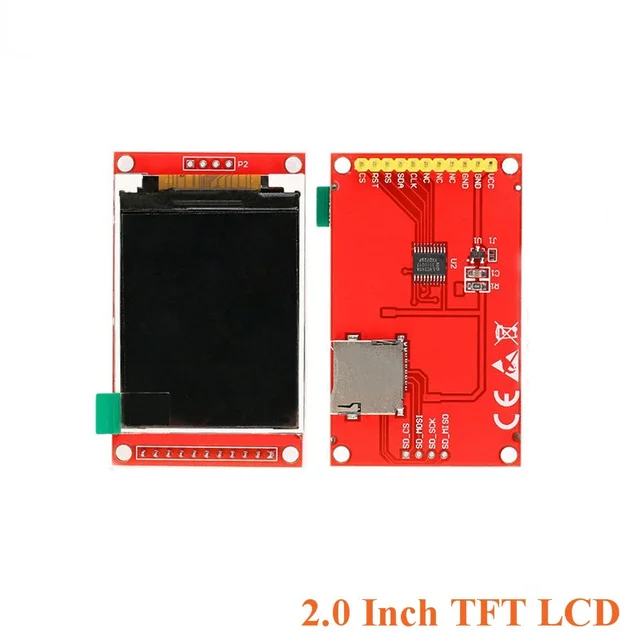

2.0 inch SPI serial screen with backplane module, at least 4 IO drivers
