WiFi Smart Thermostat Temperature Controller for Water/Electric floor Heating Water/Gas Boiler Works with Alexa Google Home

Smart Temperature Control System>>>Home Improvement

Brand Name MoesHouse

Certification CE

Origin CN(Origin)

Power Supply 95-240VAC, 50~60HZ

Fan Relay Amps Resistance:5A Inductive:3A

Valve Relay Amps Resistance:3A/ Inductive:1A

Sensor NTC3950, 10K

Accuracy +-0.5'C

Set Temp. Range 5 -35'C

Dispaly Temp. Range 5 ~ 99'C

Ambient Temp. 0 ~ 45'C

Ambient Humidity 5 ~ 95 % RH (Non Condensing)

Color

Ships From

China

Russian Federation

SPAIN

United States

Belgium

Voltage

Water Heati(No Wifi)

Electric he(No Wifi)

Gas Boiler(No Wifi)

Water Heating(Wifi)

Electric heat(Wifi)

Gas Boiler(Wifi)

Water Heating Zigbee

Electric heat Zigbee

Gas Boiler Zigbee

Wi-Fi Thermostat Temperature Controller for Water/Electric floor Heating Water/Gas Boiler Works with Alexa Google Home 3A 16A

by Moeshouse

Attention: BHT-002GA / BHT-002GALW / BHT-002GC / BHT-002GCLW doesn't include Floor sensorNOTE:

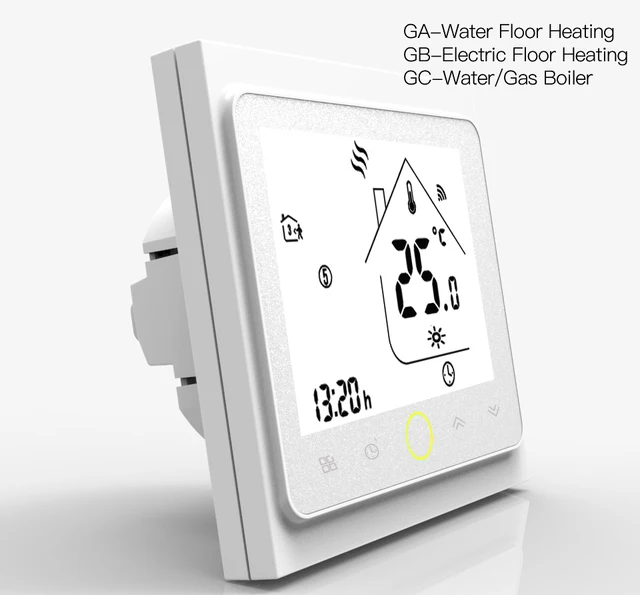

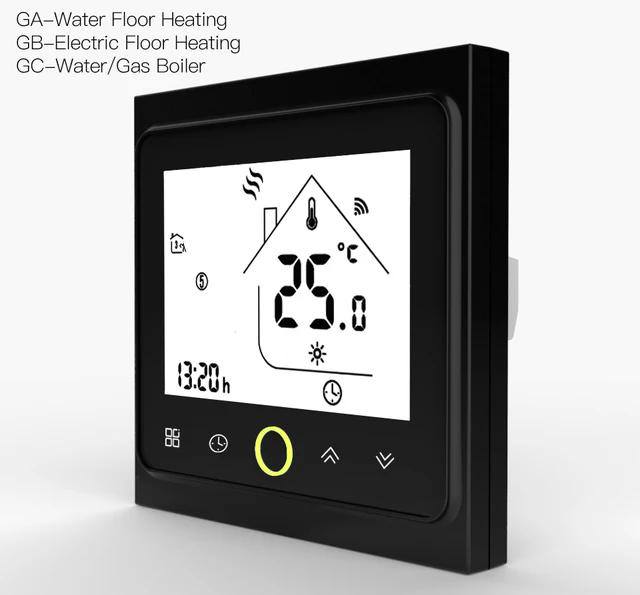

Model:BHT-002-GA/BHT-002-GB/BHT-002-GC Doesn't include Wi-Fi Function.

Model:BHT-002-GALW/BHT-002-GBLW/BHT-002-GCLW/ Include Wi-Fi Function.

The manual in English:

BHT-002

https://drive.google.com/open?id=1E1EWBRJpFiCWlt5e_pNYgQpD4nNlW7cr

BHT-002 with Wifi/Voice control

https://drive.google.com/open?id=1xt-ZfGK9-3h3uKKwX0xaEZsp8CEkTiUM



INSTALLATION

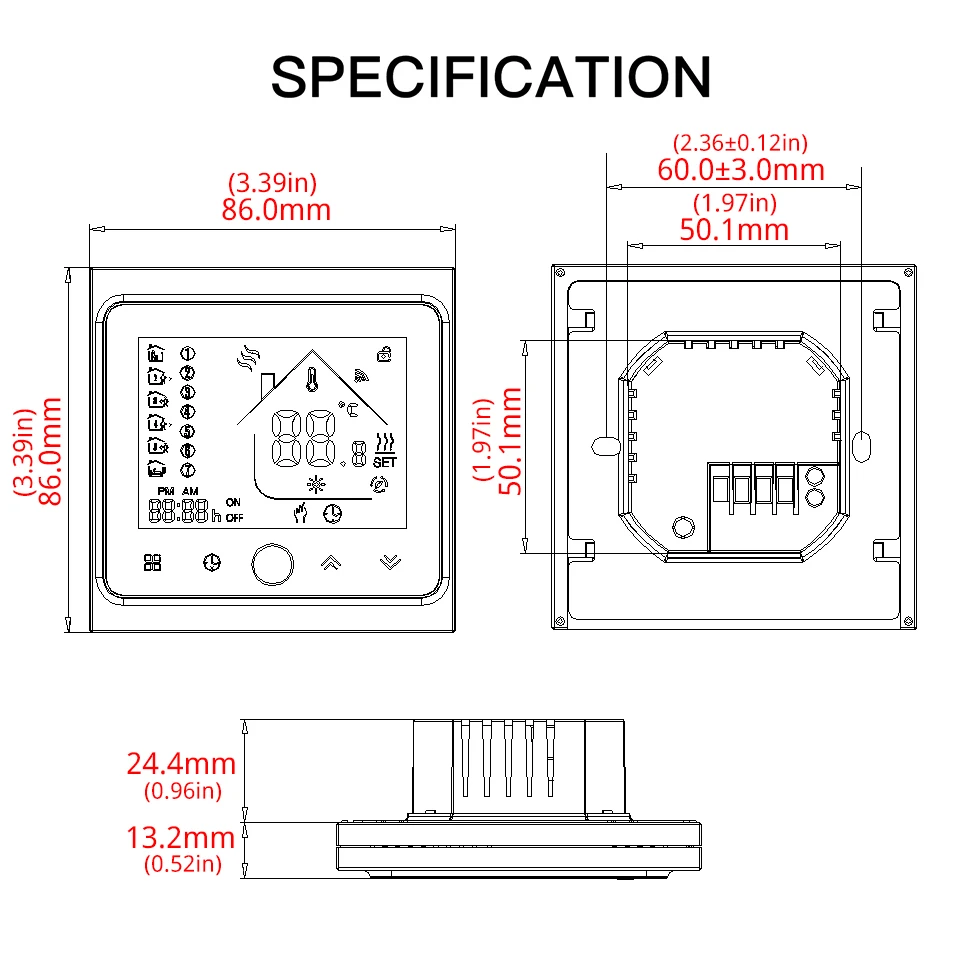

Your thermostat is suitable foe installation within a standard 86mm pattress box or European 60mm pattress box

Step 1. Keep power off. See Fig 1

Step 2. Remove the mounting Plate by rotating the LCD part. See Fig 2.

Step 3. Connect power supply, load into the appropriate terminals. (see "Wiring your thermostat" for details and Fig 3).

Step 4. Fix the mounting plate into the wall with screws in the box. See Fig 4.

Step 5. Fasten body of the thermoatat and the mounting plate through rotating. See Fig 5.

Step 6. Installation complete. See Fig 6.
