LCD Modules>>>Electronic Components & Supplies
Brand Name STONE
Origin CN(Origin)
Model Number STWI070WT-01
Type TFT
Display Mode 500:1
is_customized Yes
Colors 262K
CPU Cortex A8 1GB Hz
Flash Memory 256M
Backlight LED
Brightness 300 cd/m2
Interface RS232/RS422/RS485/TTL
Touch Panel 4-wire resistance
LCD Class A
Voltage 5V-28V
Size 3.5-15 Inch Available
Aging Test 24Hours
» Drag-and-drop components with rich property
» PNG/BMP/JPG/GIF/SVG image format support
(alpha channel, transparency support)
» Simulation and debugging of HMI projects
» Cloud support (remote updates, remote upgrades)
» Vector fonts and text styles
» Generic character encoding, command control
using JSON code and HEX code
» ASCII-based control logic and commands
» Media resource support

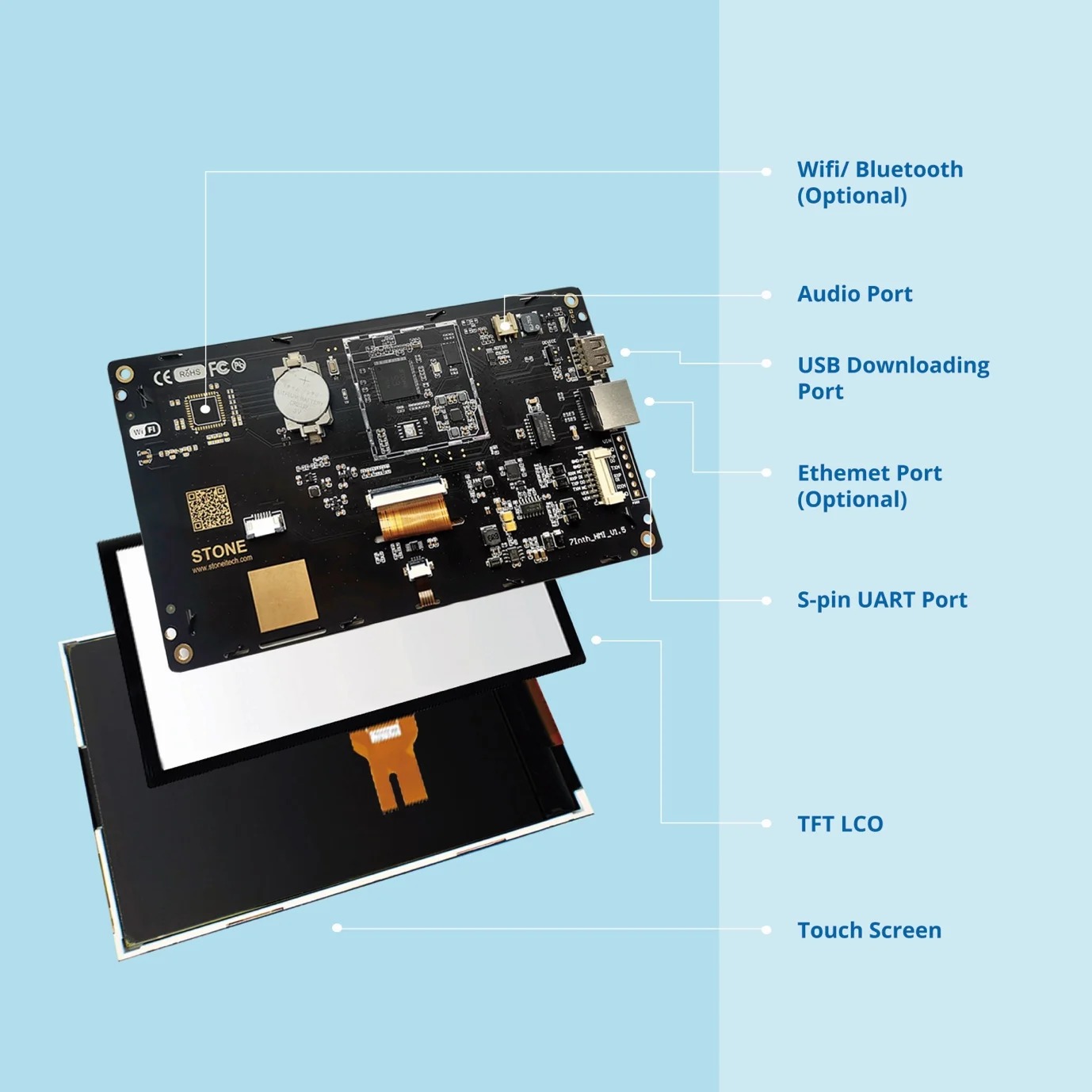

black advanced motherboardPCB thickness and color: thickness 2.0mm more reliable,advanced sunken gold process, in line with ROHS, industrial motherboard level materials.

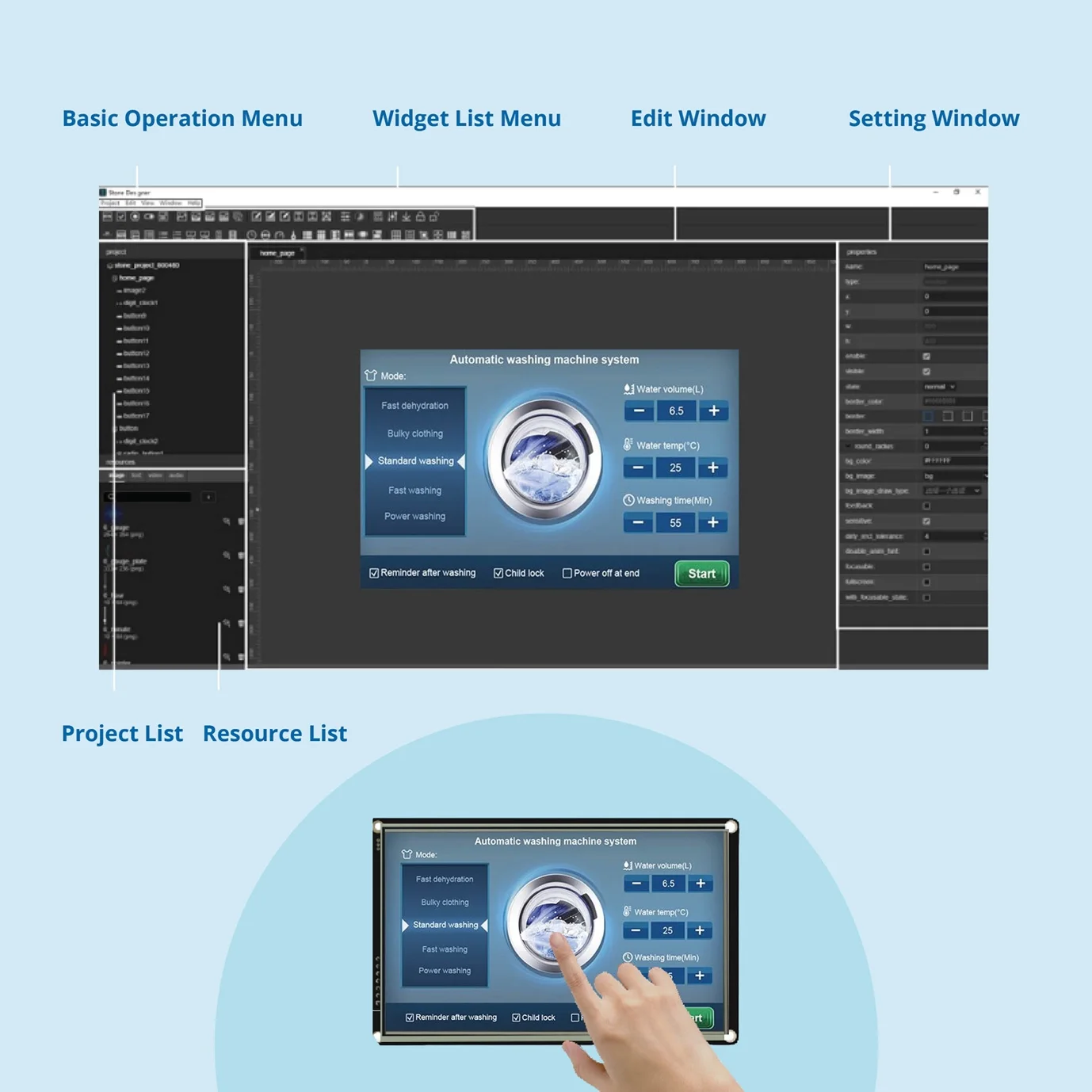

STONE Designer is compatiblewith multiple operating systemsSupport cross-platform, support Windows, macOS, Linux operating systems.
Working temperature:industrial-grade -30 ° C / +80 ° CHigh strength to adapt to the environment,-30° low-temperature normal operation,80° high-temperature normal operationhigh strength to adapt to the working environmentso that you work production worry-free.
HD display fine naturalThe 3.5-inch Display Module screen adopts the original screen imported from Qunar.Color 18 bit (262K), TTF format vector font,saturated color Even display brightness, fine screenTo present you with a higher quality visual experience.
operating principle

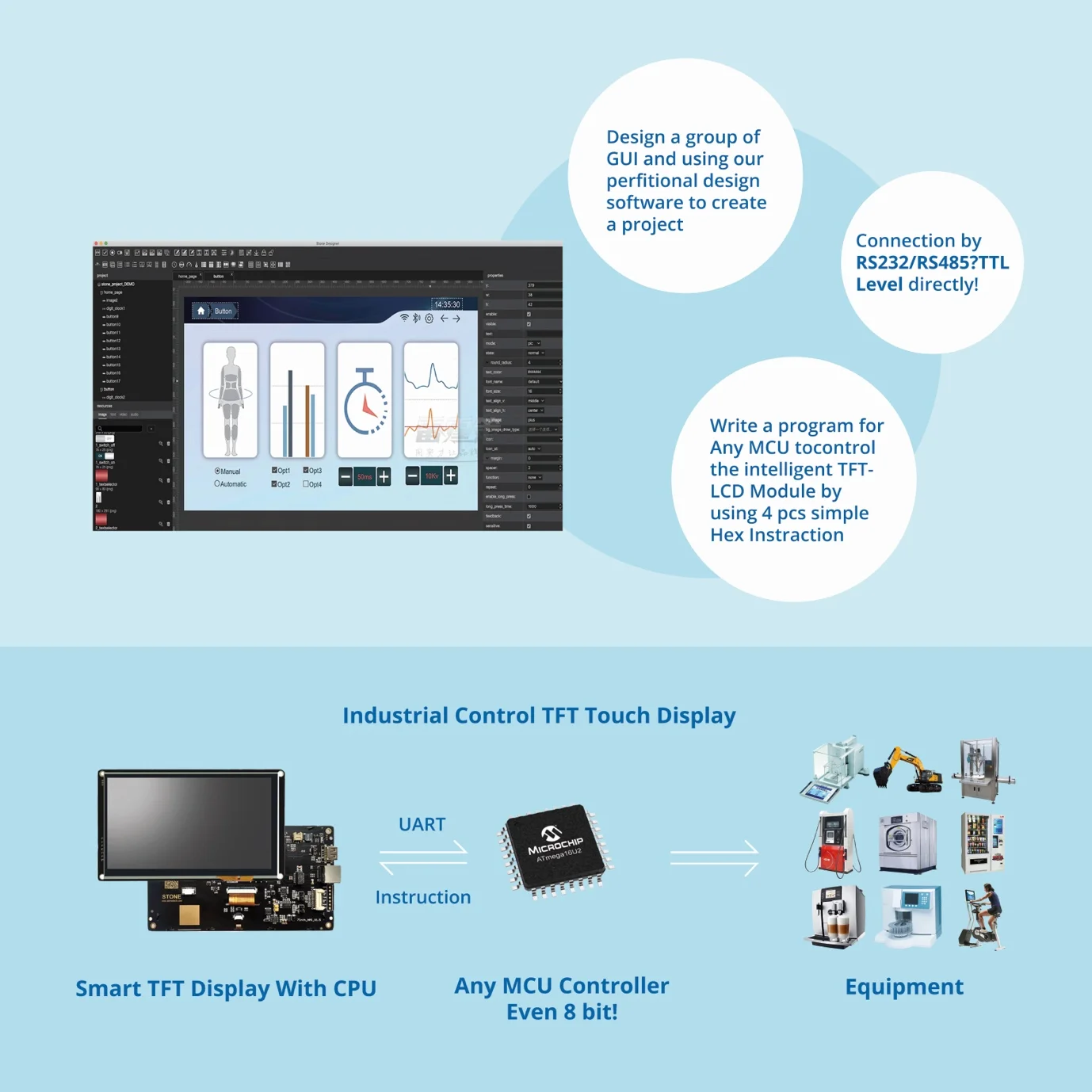

STONE Smart TFT-LCD module communicates with the customer’s MCU/CPU/FPGA/PLC.It communicates with the customer’s MCU/CPU/FPGA/PLC through commands (JSON commands and HEX codes),and the MCU will control the work of its connected devices according to the commands received.
Accessories
Certification and documentationData Sheet
Instruction Set
Editor’s Guide
CE Certification
ROHS certification
